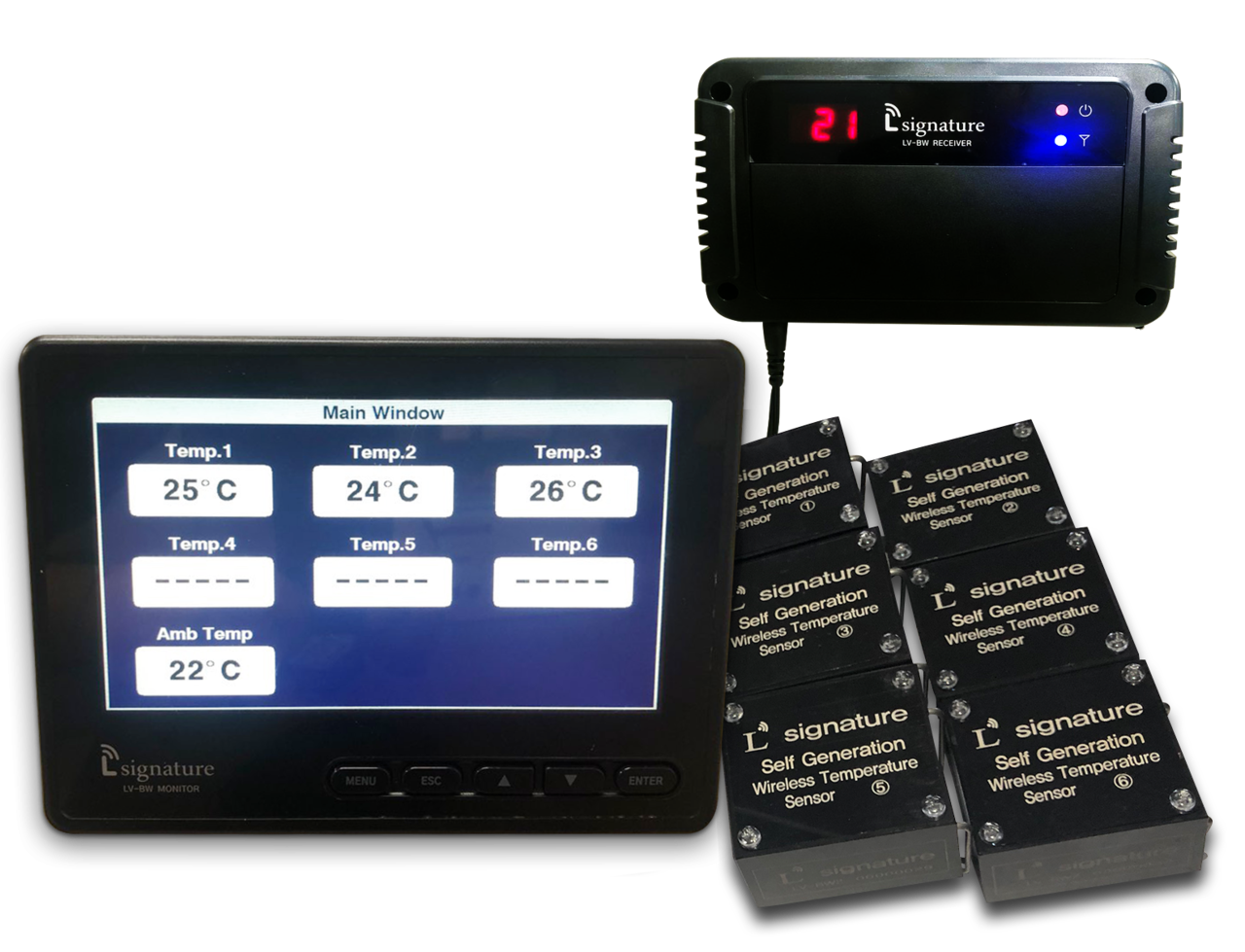

Self-generating wireless temperature sensors
for incoming panels
Self-sufficient Power supply | Inductive energy harvesting from magnetic stray fields (AC) | |
Start current | 150A | 250A |
Dimensions | W50 × D70 × L43 | W45 × D50 × L28 |
Weight | 150g | 60g |
Housing | Plastic, non-conductive, flammability | |
Fastening | High elastic clamp for busbar 6mm ~ 12mm thickness | |
Available busbar width | 50mm ~ 150mm | |
Temperature probes | 1 x Backside of housing with contact to bus bar 1 x ambient temperature 1 x PCB temperature | |
Frequency | 2.4 GHz | |
Temperature measurement | 0 ~ 200℃ Data transmission distance in air 10m ~15m | |
Data output | RS232c, RS485, RS422, Ethernet |
